We offer a comprehensive range of cold foil and high-end replicated foil series designed to meet the diverse needs of tobacco and alcohol packaging, premium gift boxes, brand labels, and commercial printing.
This Hongye China Diagonal Hologram Cast Cure Foil, in roll form, supports multiple cycles of machine operation and combines visual recognition and environmental attributes. It is suitable for brand packaging to create differentiated directional laser effects.

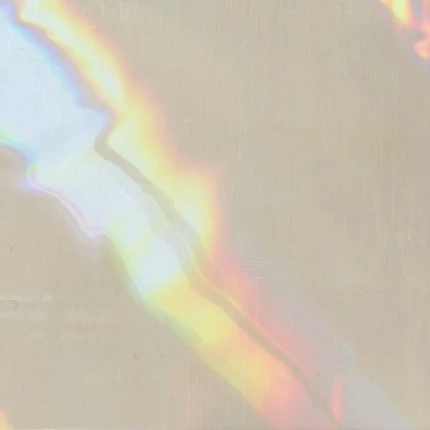

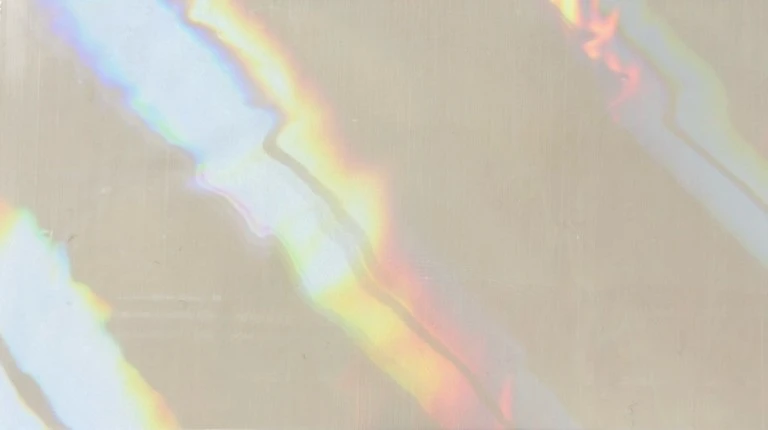

A diagonal light column is a group of directional and inclined arranged micrometer-level light grating microstructures.
When light is shone on it, the light and shadow will form continuous flowing strip-like laser reflection along the fixed inclined angle, different from the conventional concentric circles and random holographic textures.
As the viewing angle changes, the diagonal light columns will present a one-way sliding dynamic light band, with strong visual dynamics.
| Comparison Item | Ordinary Cast&Cure Foil | Hongye Diagonal Hologram Cast Cure Foil |
| Optical Texture | Random or circular holographic pattern | Custom diagonal linear grating with sliding light effect |
| Visual Feature | Static light effect, common in market | Unidirectional moving light bar, high brand recognition |
| Texture Adjustment | Limited pattern options | Adjustable grating angle and stripe density |
| Recycling Property | Metal-free, recyclable substrate | Metal-free, recyclable, directional optical customisation available |
| Application Value | General decorative effect | Unique anti-counterfeiting & brand differentiation |
- The PET base film has been subjected to directional stretching and anti-static treatment, and is not prone to deformation after repeated feeding. The grating replication accuracy is stable.
- The film surface has a wear-resistant strengthening coating, and after multiple cycles of production, the diagonal light grating is not prone to wear and blurring.
- The release layer ratio has been adjusted, and the peeling resistance is uniform. After molding, there are no residual films or lamination flaws.
- It is compatible with various UV light oil systems, and the microstructure has strong adhesion after curing, making it easy to cut and box without damaging the diagonal pattern.
- It does not contain metal evaporation coating, and the finished product has no metal residue, which does not affect the recycling and reuse of paper.
| Specification | Options |
| Available Length | 3000m / 5000m |
| Available Width | 100cm (Contact Hongye team for custom-size requirements) |
| Core Inner Diameter | 76.2mm (3") |
| Base Film Thickness | 12μm |
| Reusable Times | 8-12 times |
A: Yes, the grating angle and stripe density can be adjusted as needed.
A: Under standard operation, it can be reused multiple times, reducing the cost of consumables.
A: Yes, the underlying dynamic light effect can still be retained.
A: It is fixed in the topcoat, and normal die-cutting is unlikely to damage the texture.
A: It is recommended to use a compatible UV coating. Sample confirmation is better.
A: Samples can be sent and process debugging suggestions can be provided.
A: Corresponding inspection documents can be provided for formal orders.
