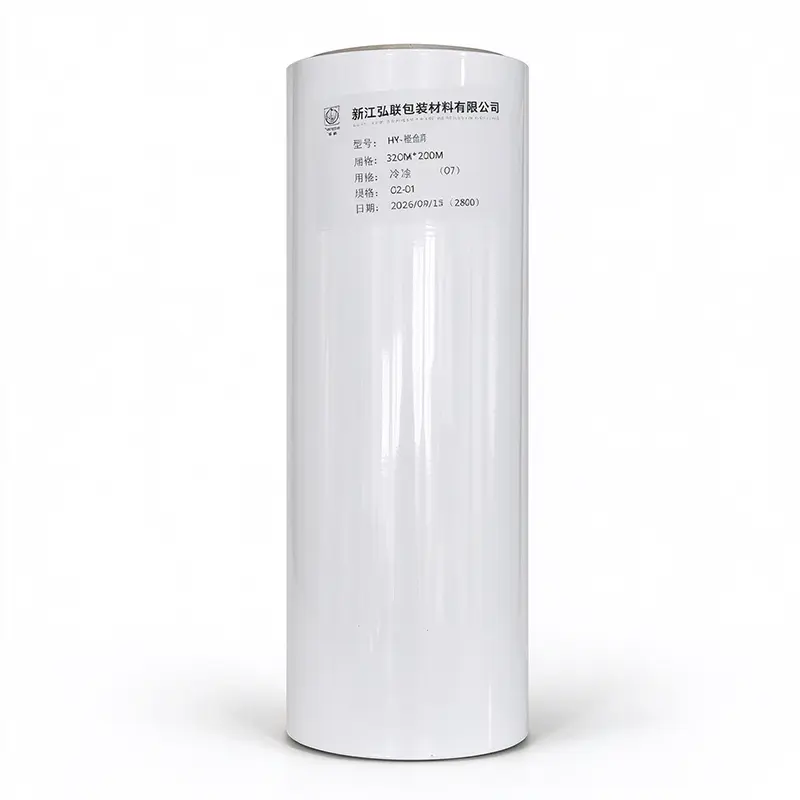

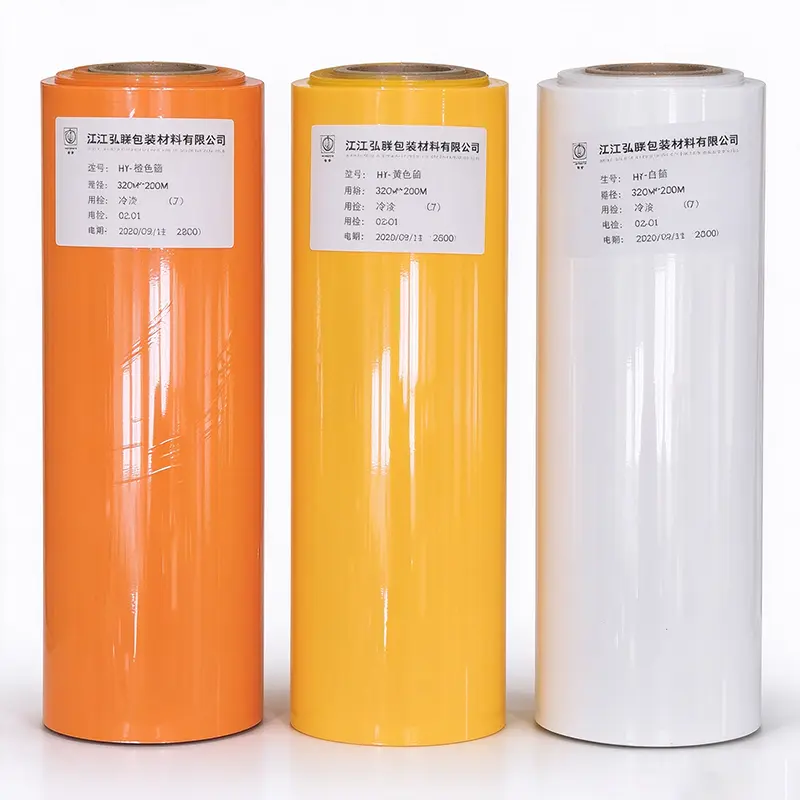

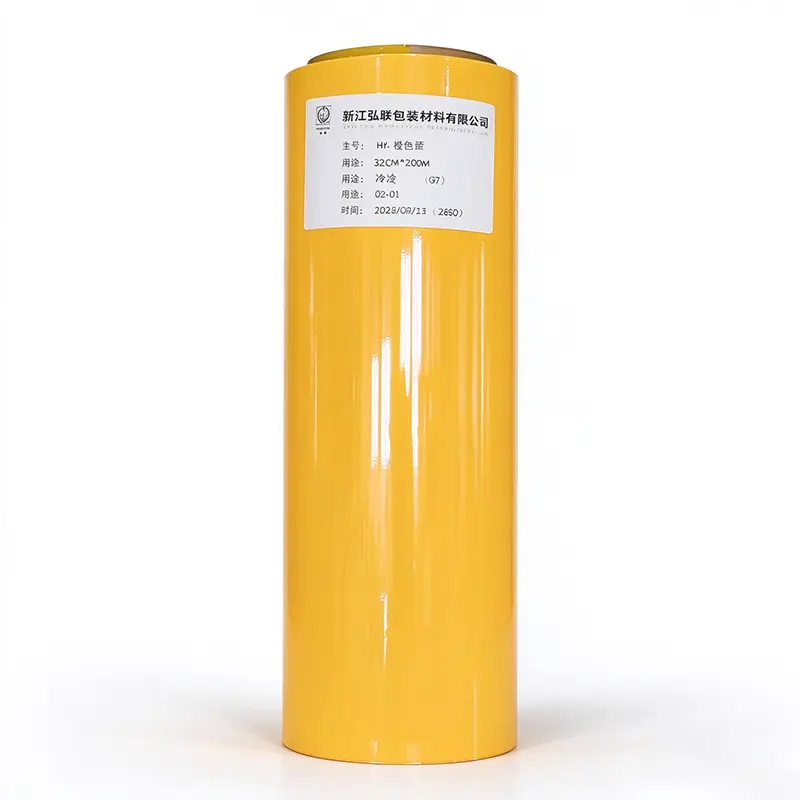

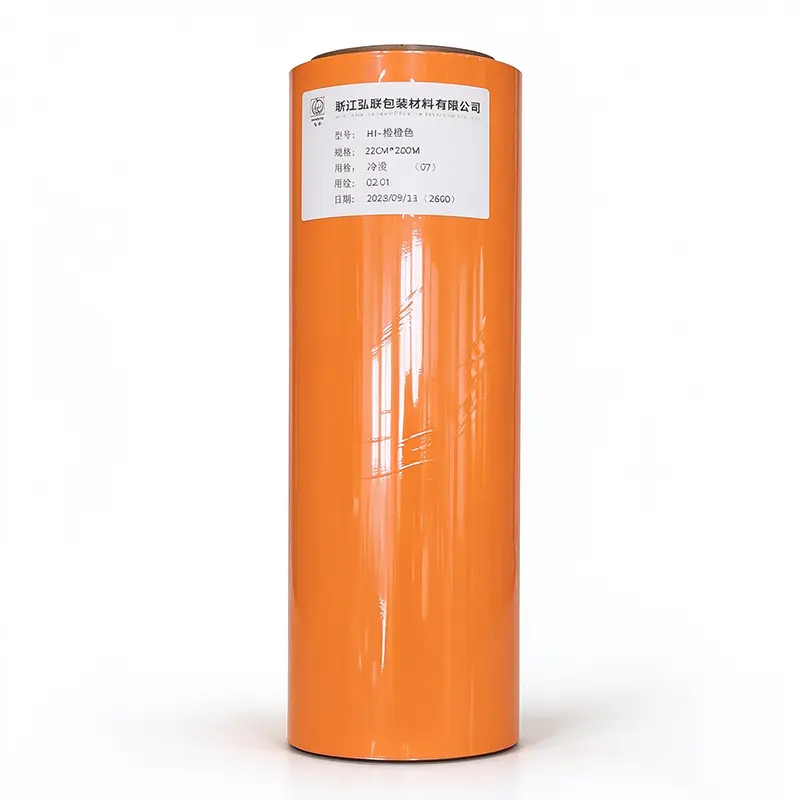

Pigment Toner Foil

Unlike metal vapor deposition type heat transfer films, Hongye's factory produces this Pigment Toner Foil with an organic pigment coating as the visual effect layer. It can directly achieve color graphic decoration on ordinary laser digital equipment without the need for additional glue or plate making.

Key process adaptation points

- Adapted to the logic of carbon toner melting heat transfer, triggered by the fixing heat of the laser machine, no need to install complex cold stamping units

- Has an adaptable range for carbon toner thickness, both thin and thick carbon toner graphics can be matched, and different graphic coverage rates can be stably transferred

- The release layer has been optimized for low release, after transfer, the blank area is clean without residue, reducing the post-cleaning process

- The membrane surface has anti-static treatment, it is less likely to absorb dust and get stuck during high-speed single-sheet paper feeding, reducing the probability of equipment downtime

- The roll material tension is controllable, the cutting edge is neat, suitable for different widths of digital post-processing equipment

Parameters

Differences from metal carbon toner heat transfer films

The conventional carbon toner heat transfer films on the market achieve a metallic texture through an aluminum vapor deposition layer, with limited effect types.

This pigment carbon toner heat transfer film relies on organic pigment coloring and can output non-metallic colors such as solid color, macarons, and dark spot colors.

The metal coating is prone to breakage at creases, while the pigment coating has better anti-bending performance, suitable for packaging boxes that require folding and die-cutting.

The metal film is easily affected by the base color of the paper, while the pigment system has stronger covering power and can still present full colors on dark paper substrates.

FAQ

1. Q: Can this Pigment Toner Foil be used in a color toner printer?

A: Yes, it needs to be tested for matching the machine's fixing temperature.

2. Q: Will the color fade when printed on dark cardstock?

A: The covering power is stronger. It is recommended to conduct a sample test first for confirmation.

3. Q: Can semi-transparent pigment transfer effects be achieved?

A: Supported. The opacity of the pigment coating can be adjusted.

4. Q: Are the printed graphics resistant to alcohol wiping?

A: Generally resistant, for high wiping requirements, consider laminating.

5. Q: Are the parameters of different brand laser printers significantly different?

A: Different devices require fine-tuning of the fixing parameters.
