Pearl Toner Foil

Pearl Toner Foil produced by Hongye comes with a soft pearl iridescent luster. It presents a delicate and smooth iridescence texture as the viewing angle changes, without strong metallic reflection.

Technology / Process

The Pearl Toner Foil is made through a multi-layer PET substrate and special pearlescent coating composite process. The color layers are transparent and natural. It supports variable data graphics, short single proofing, and small batch customized production.

Applicable substrates:

- Various coated papers, matte powder papers, special art papers, with finer and smoother paper surfaces resulting in better pearlescent effect

- White card, gray base white board, etc. packaging card papers, suitable for surface local decoration of gift boxes and handbags

- Some synthetic papers, light-coated special papers, it is recommended to do a small sample test before machine operation

- Paper surfaces with heavy silicone oil or high release coating are not recommended, as they will reduce the transfer adhesion

Parameters

Common transfer faults and troubleshooting guidelines

1. Partial incomplete transfer of pearlescent

Check: Insufficient heat press temperature, or too thin carbon powder ink layer thickness; slightly increase the heat press parameters to ensure carbon powder is fully heated and melted.

2. Large area detachment of pearlescent film

Check: The substrate surface contains demolding agents, and the paper surface tension is insufficient; replace with suitable paper or do surface pre-treatment in advance.

3. Edge smudging and overflow of transfer pattern

Check: Excessive heat press pressure, or slow feeding speed; reduce pressure and appropriately increase the feeding speed.

4. Uneven pearl luster of finished product

Check: Unstable tension of the transfer film roll or uneven temperature distribution of the heat roller; check the equipment rollers to stabilize the roll material tension.

Factory Advantages

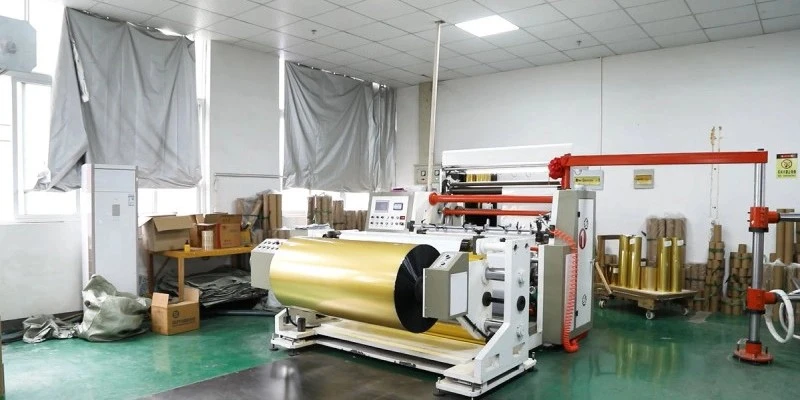

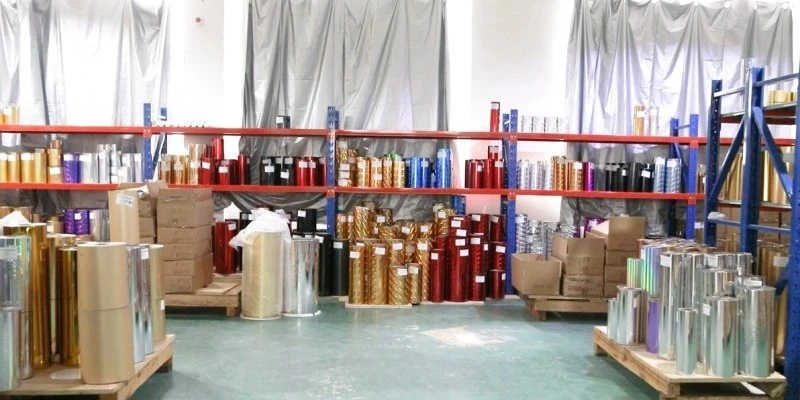

Hongye has a complete production line for coating, evaporation deposition, compounding and cutting. The pearlescent coating formula is independently formulated, allowing for flexible adjustment of the size of the pearlescent particles and the intensity of the luster.

The entire production process is equipped with online visual inspection, which can promptly detect spots, color differences and film breakage defects. All processes are completed within the factory in a closed loop, without outsourcing or subcontracting, and can quickly respond to sample color matching requirements.

We can customize the width and length of the roll material according to customer orders. For export orders, moisture-proof and dust-proof roll materials can be packaged in accordance with foreign trade standards to ensure stable quality during ocean transportation.

FAQ

1. Q: Can Pearl Toner Foil be used with black-and-white laser printers?

A: Yes, as long as the device has a thermal transfer printing component.

2. Q: Can the pearl effect be adjusted in strength?

A: Yes, the pearl coating formula can be adjusted according to the requirements.

3. Q: Will thick cardstock affect the transfer effect?

A: Thick paper has slow heat conduction, so the thermal press parameters need to be adjusted.

4. Q: Is the pearl layer on the transfer surface scratch-resistant?

A: It is relatively durable, but in high-friction scenarios, it is recommended to apply a protective film.

5. Q: Can samples be obtained for free?

A: Samples are available for regular styles. Shipping costs are additional.

6. Q: Will storing in a humid environment affect the film material?

A: High humidity environments can easily affect performance. It is recommended to store in a dry and dark place.

7. Q: Can quality inspection documents be provided for export orders?

A: Corresponding batch quality inspection reports can be provided after placing the order.
