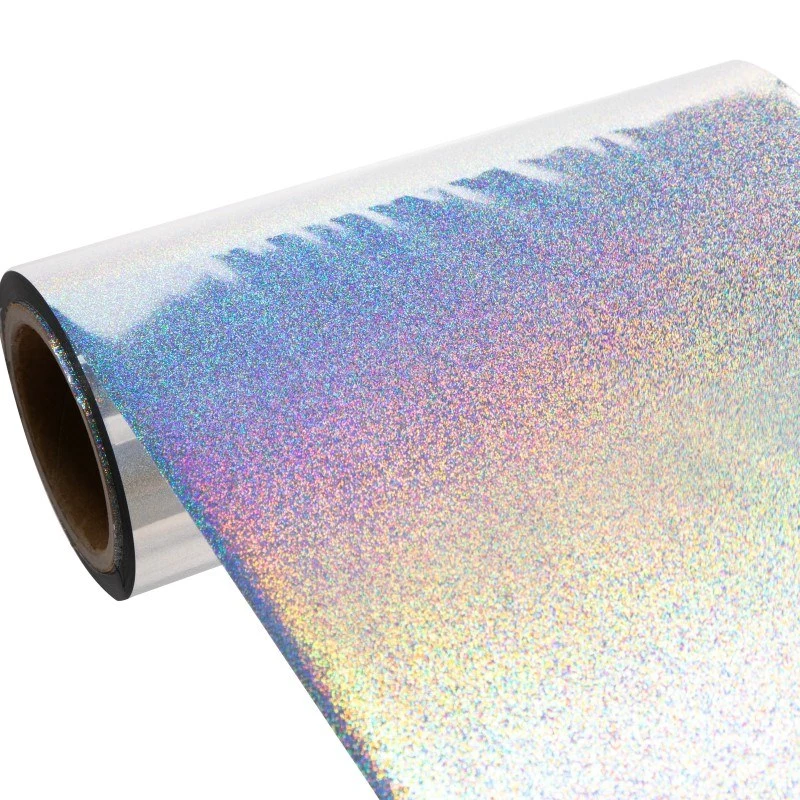

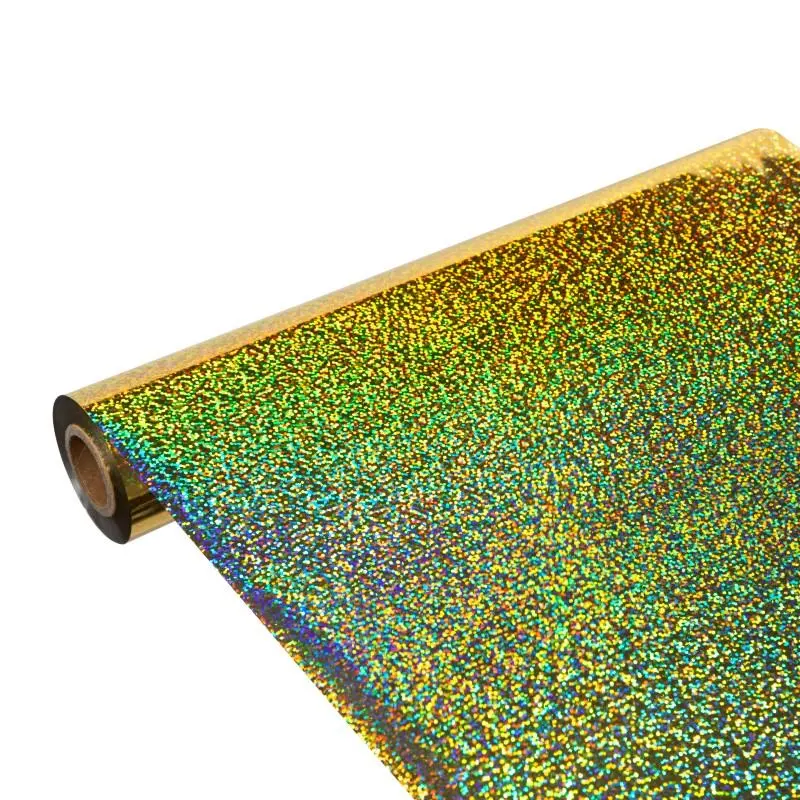

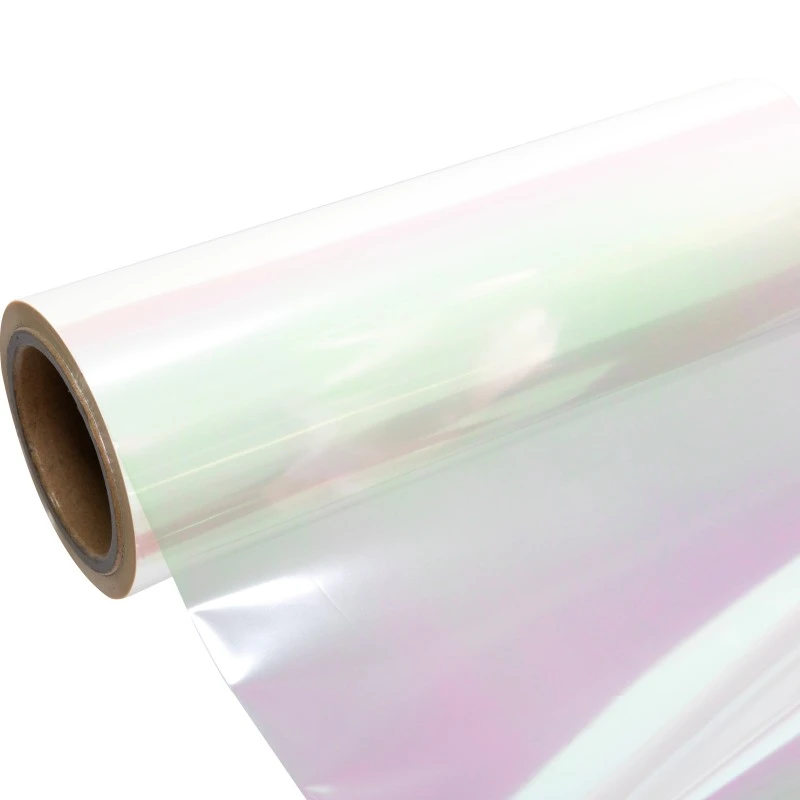

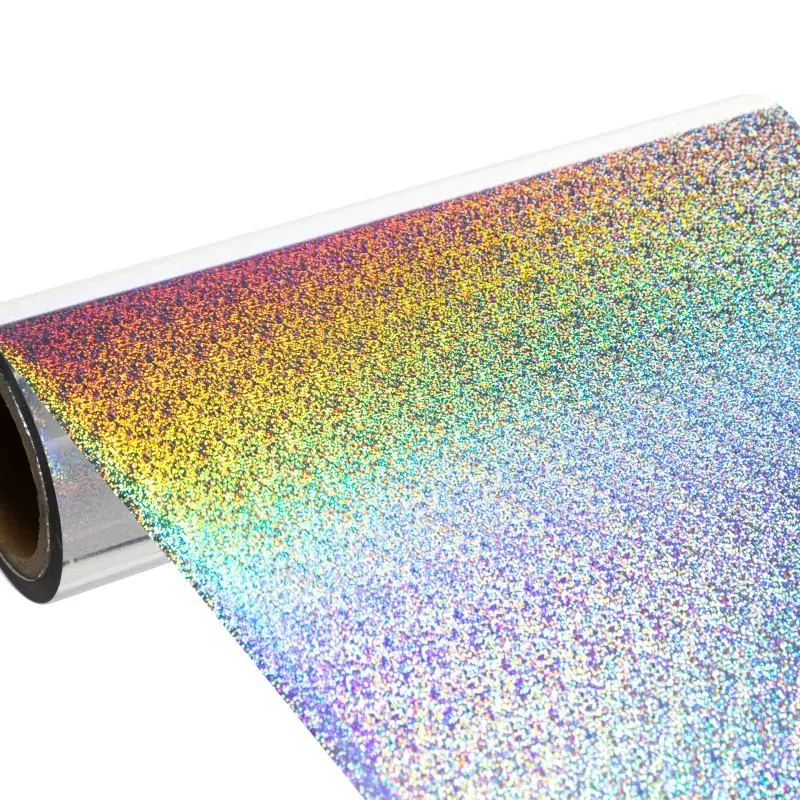

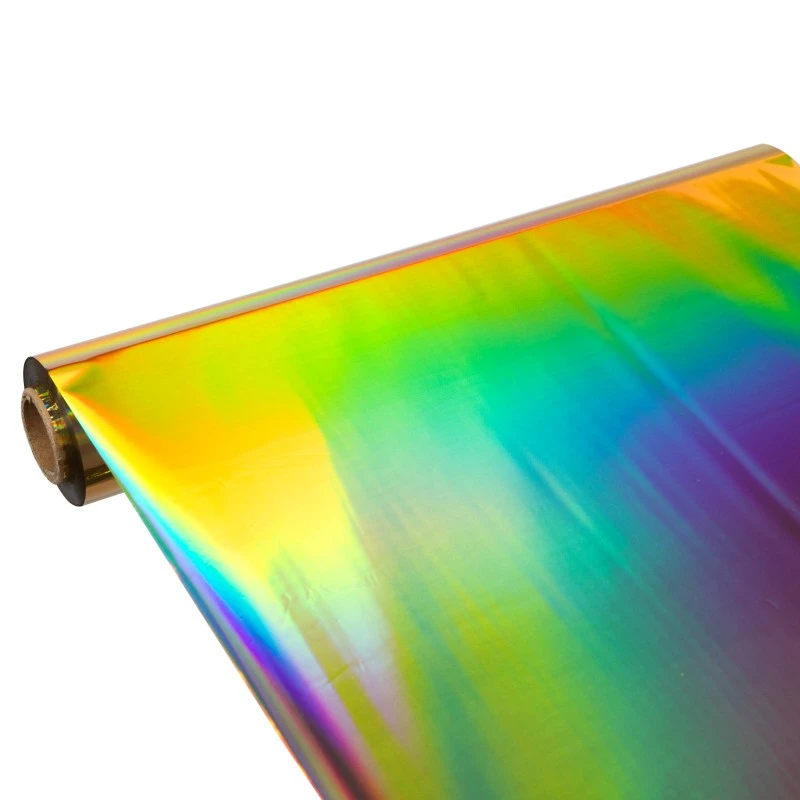

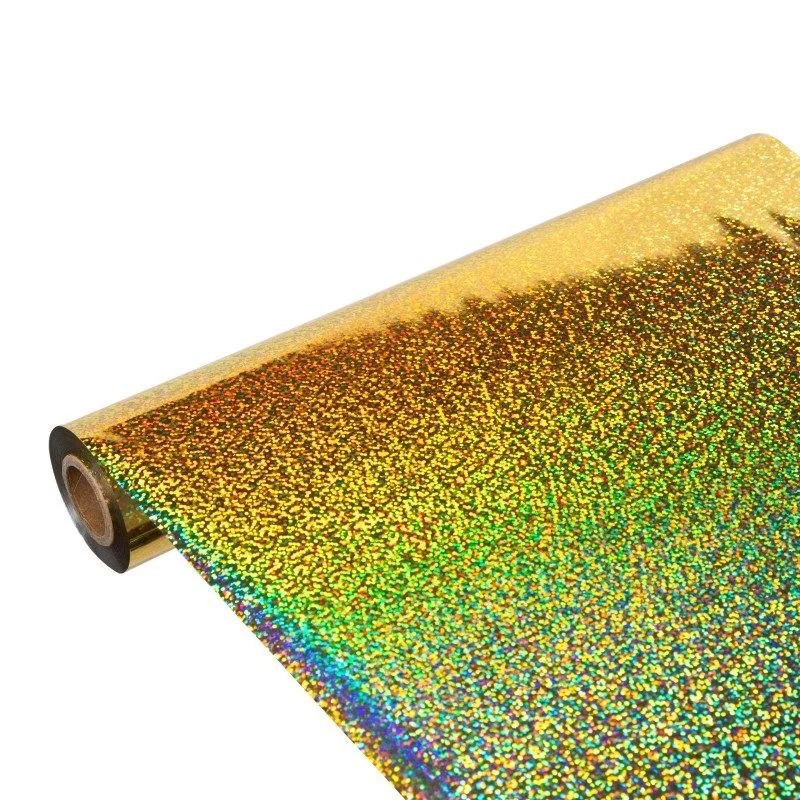

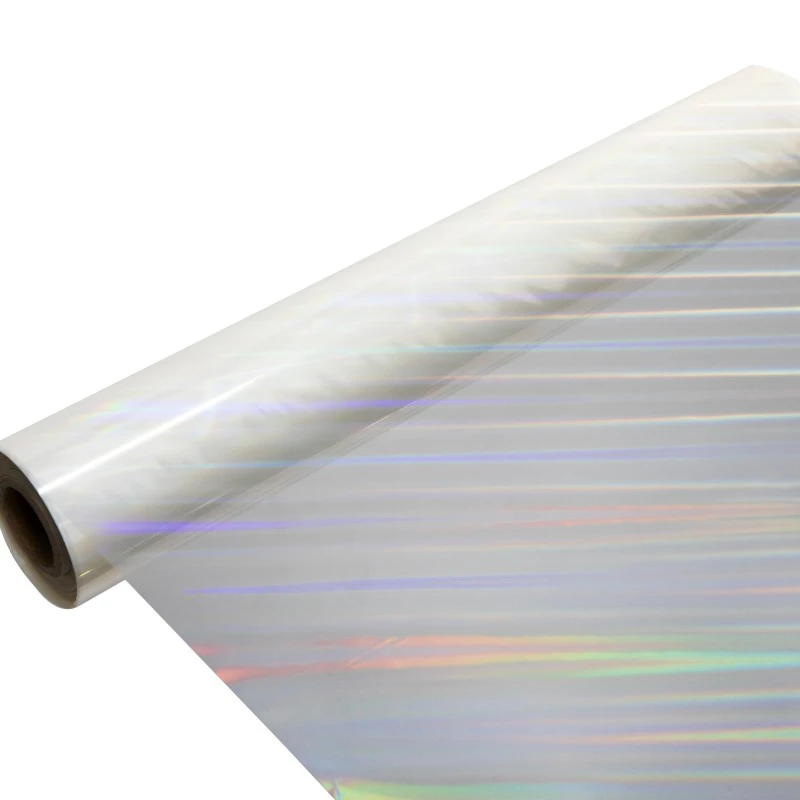

Holographic Digital Foil

This Holographic Digital Foil designed by Hongye factory has pre-processed grating microstructures on its surface. Under the illumination of light, it presents a variable rainbow-like iridescent effect, including various ready-made grating styles such as brushed, dot matrix, and geometric patterns.

Key selling points

The product is based on PET as the carrier, integrating holographic relief layer, release layer and heat-melt adhesive layer suitable for digital ink powder.

Small batch production can achieve holographic anti-counterfeiting texture without the need to mold, filling the material gap for special iridescent effects in the field of digital printing.

Parameters

Product function

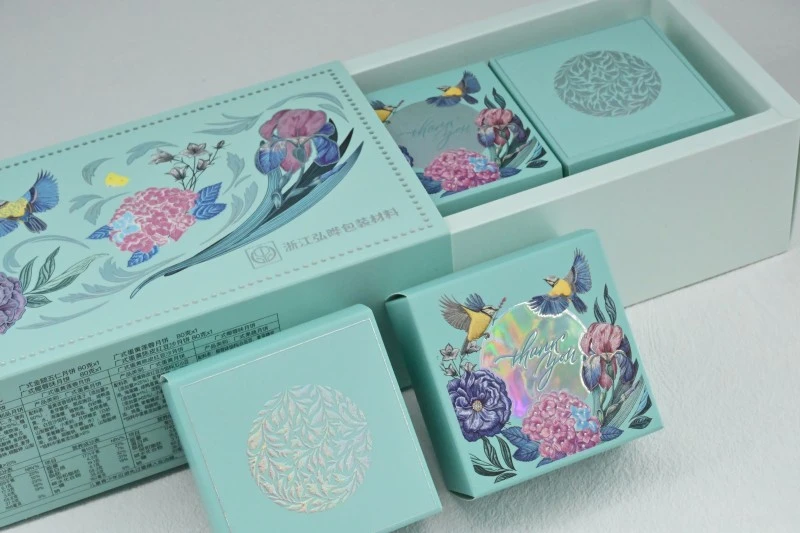

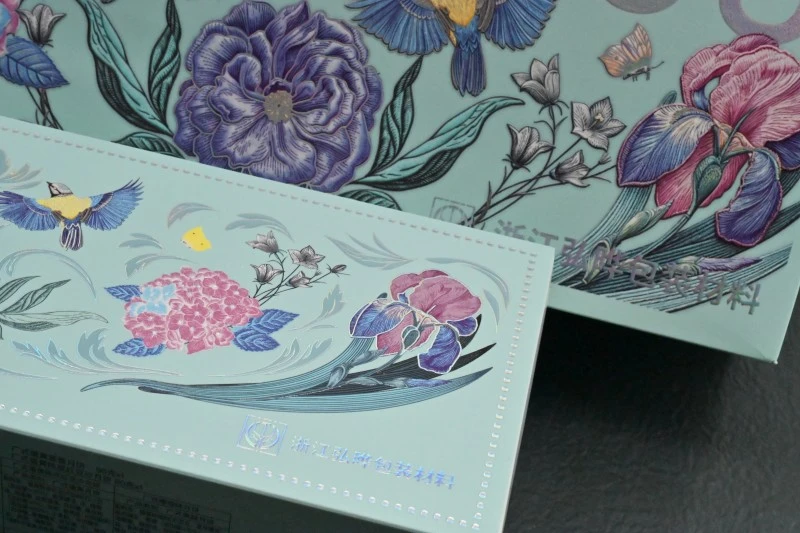

1. Upgrade of visual differentiation packaging

2. Simple visual anti-counterfeiting assistance

3. Adaptation to short-format digital orders

4. Enrichment of post-processing craftsmanship expressiveness

5. Expansion of printing factory business boundaries

Notes for Attention

1. It is only compatible with inkjet digital printing substrates. The ink layer structure of inkjet-printed products is different. Direct hot stamping is prone to incomplete transfer and foil loss. It is essential to conduct on-machine verification first.

2. The curing degree of ink powder directly determines the yield of hot stamping. If the ink powder is not fully melted and cured, large areas of residual glue and delamination will occur. Before production, confirm the printer parameters.

3. The equipment temperature and material feeding speed need to be finely adjusted. If the temperature is too high, the grating texture is prone to be lost due to gelation; if the temperature is too low, the hot stamping will not be accurate.

4. Some special coated paper will weaken the holographic reflective effect. The brightness of the rainbow presented by different base papers will vary. Do not directly predict the finished product by referring to the appearance of the film roll itself.

5. After the hot stamping is completed and cooled, carry out post-processing such as die-cutting and laminating. During the hot state, rubbing and pressure application will damage the microstructure of the grating and lose the iridescent luster.

6. The film roll should be stored in a light-protected environment. Long-term direct exposure to ultraviolet rays will accelerate the aging of the holographic layer, causing color attenuation.

7. It is not suitable for end-user scenarios that involve contact with high-temperature friction. The anti-abrasion performance of the grating surface is limited. The design of the terminal product needs to evaluate the usage environment.

Our services

1. Multi-pattern sample support

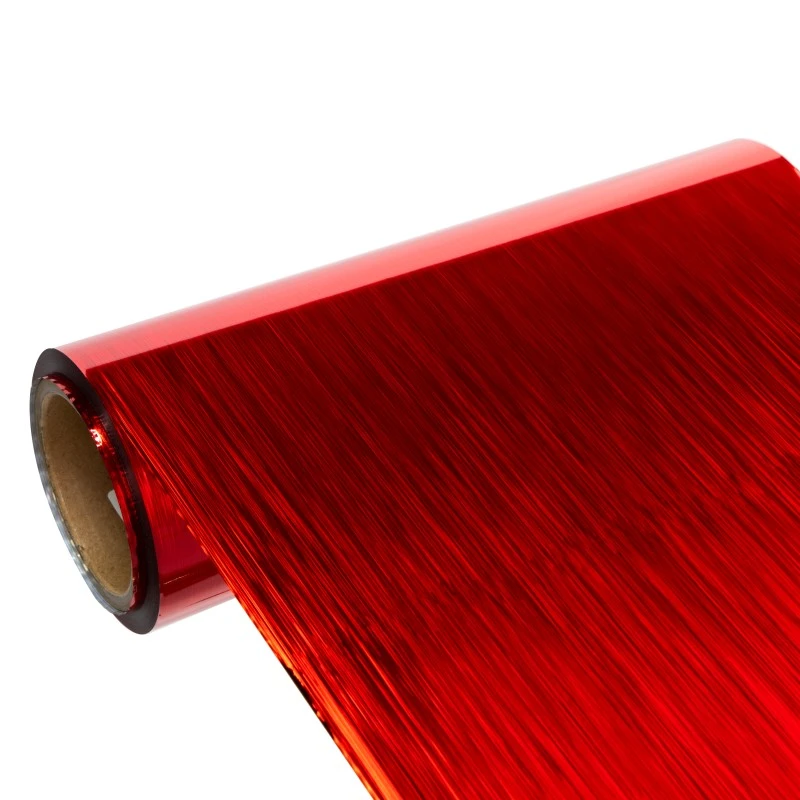

Support for existing holographic grating styles such as wire drawing, dot array, and geometry, and can provide a combined sample package to facilitate customers to test the effect on their own equipment.

2. Process technical support

Technical staff will address feedback on machine operation problems, provide reference suggestions on temperature, speed, etc., and assist printing factories to quickly debug and stabilize production.

3. Flexible width for sheet cutting

Cut the width of the film roll according to the customer's equipment specifications, and deliver the standard specifications in stock quickly. Special specifications will be produced according to the order.

4. New grating development evaluation

For customers' specific texture requirements, provide an assessment of the feasibility of custom grating replication, clearly defining the development cycle and order placement threshold.

FAQ

1. Q: Can your Holographic Digital Foil apply patterns locally?

A: Yes, the pattern can be applied by controlling the printing area through the digital ink layer.

2. Q: Will the holographic effect vary greatly depending on the type of paper?

A: Yes, it will. It is necessary to conduct on-machine proofing using actual paper.

3. Q: Can Hongye provide samples of multiple textures?

A: Multiple texture sample packages can be provided. Shipping costs will be charged based on actual expenses.

4. Q: Why does the gloss of the pattern become less after heating?

A: It is mostly due to excessive temperature, causing damage to the pattern structure.

5. Q: Can unique exclusive holographic textures be customized?

A: Customization is supported. A corresponding minimum order quantity must be met.

6. Q: How should the film roll be stored after opening?

A: Store it in a dark, sealed container in a cool and dry place, and store it vertically.

7. Q: Can compliant-related materials be provided for large order shipments?

A: Batch supporting documents can be provided for formal orders.
